Circuit Elements

Equivalent Impedance/Admittance

Problem #6

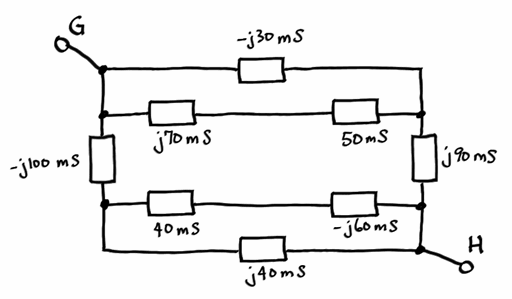

Determine the equivalent impedance between the terminals G and H. To begin, convert the admittance of each element to impedance, then work the problem completely in terms of impedance.

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript
