Keywords:
Mutual Inductance
Phasor Analysis
Problem #1

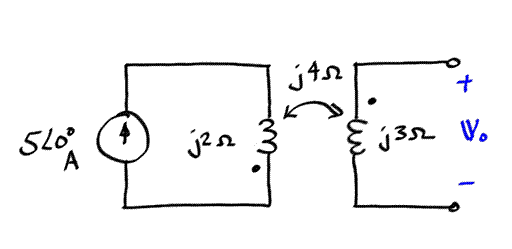

Determine the voltage Vo.
Need a hint?
Re-draw the circuit using dependent voltage source model for coupled coils.
|
