Energy Storage Elements
Current-Voltage Relationship of Capacitors
Problem #3

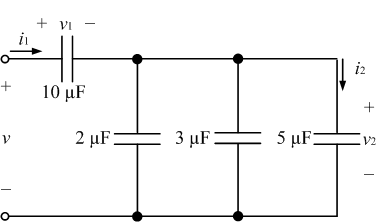

In the circuit below, v(t) = 10e-1000t V. Assume that the 10μF capacitor is fully discharged at t=0, and find v1(t), v2(t), i1(t) and i2(t).
Need a hint?
Combine all the capacitors to one equivalent capacitor. Use the V-I relationship to find i1(t). Then use i1(t) to find v1(t) across the 10μF capacitor. Use your knowledge of voltage drops to find v2(t). Finally, use the V-I relationship to find i2(t).
