Two-Port Networks
Admittance Parameters
Problem #1

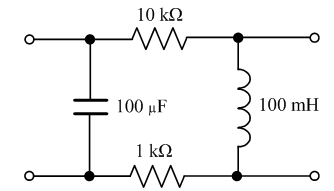

Find the y parameters of the two-port circuit.
Need a hint?
Set V2=0 to find y11 and y21 . y12 and y22 can be found by setting V1=0.
|
