CSSE 230
Graph Surfing Programming Assignment

Milestones

1 (100 pts) Create classes AdjacencyListGraph<T> and AdjacencyMatrixGraph<T> that extend the given abstract class Graph<T>. For each, implement and test the following methods: constructor taking a Set<T> of keys, addEdge(T from, T to), size(), numEdges(), hasVertex(T key), keySet(), hasEdge(T from, T to), removeEdge(T from, T to), outDegree(T key), inDegree(T key), successorSet(T key), predecessorSet(T key). Also implement successorIterator(T key) and predecessorIterator(T key), which return appropriate lazy iterators that traverse the corresponding neighbors of key.
2 (60 pts) Implement shortestPath(T from, T to) and stronglyConnectedComponent(T key). Also, see challenge for possible bonus points: find a challenge pair for the Wikisurfing game.

Overview

This is a mostly individual programming assignment. In the second week, individuals are allowed to specify one teammate (another student in your section) with whom to discuss ideas. You each will still commit individually, but it's fine if you and your teammate have similar solutions for Milestone 2 methods. On the other hand, you are not to discuss solution ideas with any other CSSE230 student besides your designated teammate until after the project due date.

For this problem, you’ll implement the Graph ADT in two ways: as an adjacency list representation and as an adjacency matrix representation. In the second milestone, you will write methods to (1) find the shortest path between any pair of elements in the graph and (2) find the strongly connected component of any element in the graph, and the tests will apply both of these methods to a subgraph of the Wikipedia links graph. Manually finding shortest paths in the Wikipedia links graph is known as Wiki Racing, the Wiki Game, or Wikisurfing. Try it for yourself here!

Incremental Development Path

Start by accepting the GraphSurfing assignment from Github using this link.

Then download and unzip this data file into your Eclipse workspace (probably at c:/EclipseWorkspaces/csse230/) so that the GraphSurfing project and the unzipped GraphSurfingData folder are siblings. Note that you can simply move it to this directory from your desktop; no need to actually import it into Eclipse. In any case, please do not commit the data files! They take up lots of room and bandwidth on the Git server.

Detailed specifications

An abstract class Graph<T> is given to you. In Milestone 1, you will implement this class in two ways, using (1) an adjacency list representation and (2) an adjacency matrix representation. Each implementation requires several methods that are specified in the abstract class. Read the Javadocs in the Graph<T> class for details! Use the Milestone 1 test to guide you. Many of the tests use the following two example graphs: note that the first is a Graph<String> and the second is a Graph<Integer>.

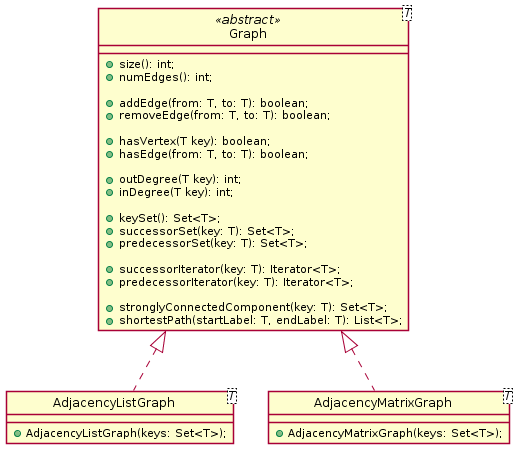

class diagrams

To make sure your implementations are truly adjacency-list and adjacency-matrix-based, the Milestone 1 tests include two speed tests:

Beyond awarding unit test points, the results of these speed tests will act as a flag for the grader. If, on inspection, your code seems to be unfaithful to the desired representations (adjacency list and adjacency matrix), it is possible that you may lose unit test points even for working code.

The Milestone 1 tests also include speed tests for the iterators, to make sure they are lazy.

For Milestone 2, implement two new methods that relate to the link-surfing game. The shortestPath(T from, T to) method allows the computer to optimally solve the link-surfing game on the graph. The stronglyConnectedComponent(T key) method is not as directly relevant to the link-surfing game, but it could be used to establish a "universe" of keys for which any pair forms a solveable challenge in the link-surfing game. It also identifies "cliques" within the graph, providing insight into the structure of the graph's communities.

Tip: it is legal (and encouraged) to implement methods in the abstract Graph<T> class if they are implementation-independent (i.e., utilize only other abstract Graph<T> methods.) In this case, remove the abstract modifier from the method declaration and implement in Graph<T>. This can save you some copy-pasting, and increase the elegance of your code! (This is mainly helpful in Milestone 2. In Milestone 1, most of your methods will likely be implementation-dependent.)

WikiSurfing

Once you have implemented shortestPath(T from, T to) and stronglyConnectedComponent(T key), it's time to WikiSurf! Follow the instructions in the "Incremental Development Path" section above. The data files you download contain a subset of the Wikipedia links graph: vertices consist of all page names in the Living people category, further reduced by removing all vertices that have no edges in this subgraph. That is, you're working only with Wikipedia pages of living people. The resulting graph has over 460,000 vertices and over 2.1 million edges. [The data originates from the Wikicrush project and has been condensed for our project. This dataset was collected in February 2015.]

The Milestone 2 tests will call methods from the WikiSurfing class, that construct the graph using your code from Milestone 1, and then run your Milestone 2 methods to see how they work on the large graph.

Optional challenge problem for bonus points: Find a challenge pair: pair of keys in the Living People graph whose shortest path is as long as possible. To receive any bonus points, the shortest path of your challenge pair must be at least length 16. You receive 1 bonus point for each step you go beyond 16.

If you have a pair, copy the from and to keys into the first two lines of the challenge-pair.txt file in your project folder. Also, provide some documentation as to how you found your pair: explain briefly in words what you did in the challenge-pair.txt file starting on the third line. Of course, commit any code that you used to find your pair. (Milestone 2 teammates can report the same challenge pair, but I don't expect to see common pairs between teams, unless people are finding an optimal pair.)

Grading

Based mainly on unit tests, with some manual inspection to make sure tests are behaving as intended.

Turnin

Submit your code by committing it to your github repository.
