CSSE 230
Data Structures and Algorithm Analysis

Homework 9 - 45 points

To Be Turned In

Submit to the drop box.

  1. (23 points). Average-case analysis of unsuccessful search on a naive binary search tree (i.e., NOT self-balancing. Note: we assume such trees are created using only insertions, not deletions.)
    1. (Adaptation of Weiss Exercise 19.7.) For an extended binary tree (EBT) T, you know already that internal path length IPL(T) is the sum of the depths of all of the internal nodes of T. Similarly, the external path length, EPL(T), is defined as the sum of the depths of all of the external nodes of T. Prove that for any EBT T,

      EPL(T) = IPL( T) + 2*IN(T),

      by strong induction on the number of internal nodes IN(T) in the tree.

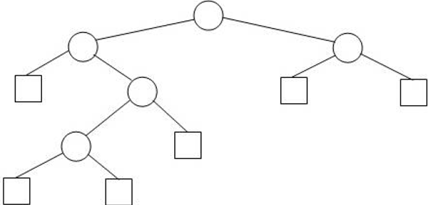

      An example of this fact is given by the tree in the following picture: note that IPL(T) = 0+1+1+2+3 = 7, and EPL(T) = 2+2+2+3+4+4 = 17 = 7 + 2*5 = 7 + 2*IN(T). Your job is to show this relation is true for EBTs in general.
      EBT picture

    2. In class, we analyzed the average case of successful search on a naive binary search tree. To do this, we derived that the expected IPL(T) [i.e., sum of depths] for a tree T of size IN(T) = N is approximately 1.38 N log N. Dividing this by N, we see the average-case depth of a node, and thus running time for successful search, is O(log N).
      Suppose that an unsuccessful search (for a value not in the tree) is equally likely to end in any of the external nodes of the tree. Given this assumption, the successful-search analysis from class, and the result of your proof from (a), what can you say about the average-case big-O running time of an unsuccessful search on a naive BST? Briefly explain your answer.
  2. (12 points) Solve the recurrence relations below. Indicate which strategy you are using and show your work. Big-theta or exact answer required? Big-theta. On any problem where it is appropriate to use the Master Theorem, big-theta is sufficient (you can't get better from the theorem). But if the master theorem doesn't apply for a certain problem (hint, hint), you'll have to use another technique like telescoping, or filling out a table and doing guess and check. And then you'll have an exact answer anyway on your way to getting big-theta. So write the exact answer too as part of your solution.
    1. T(1) = 1, T(N) = 2 T(N/4) + N0.5
    2. T(1) = 1, T(N) = T(N - 2) + 2, assuming N is odd.
    3. T(1) = 1, T(N) = 3 T(N/2) + 2N
  3. (10 points) Weiss Exercise 8.14[8.14]: Suppose that both arrays A and B are sorted and contain N elements. Give an O(log N) algorithm to find the median of all elements in A and B. Duplicates are allowed and should be accounted for in the median computation: for example, if A = [1,3,3] and B = [2,3,3], then the answer should be the median of [1,2,3,3,3,3], which is 3. You don't need exact Java code, but explain your algorithm in enough detail to convince us it works in O(Log N) time. This will require some insight - don't leave it to the last minute!

For Your Consideration

These problems are for you to think about and convince yourself that you could do them. It would be good practice to actually do them, but you are not required to turn them in.

  1. Weiss exercise 6.4 [6.4].
