Cars, Trucks and Trains!
CSSE 221 – Fundamentals of Software Development Honors
Fall 2009–2010

Work on this exercise EITHER by yourself, OR with a partner, using pair programming.

• If pair programming, both partners should participate fully in ALL aspects of the project.
• If pair programming, ask me to set up a shared repository for the partnership.

Helpful Hints

    public abstract class Vehicle {
        public enum DIRECTION {
            /**
             * Vehicle faces LEFT.
             */
		LEFT,
            /**
             * Vehicle faces RIGHT.
             */
            RIGHT
        }
            ...

        protected Vehicle.DIRECTION direction;
            ...

            if (this.direction.equals(Vehicle.DIRECTION.RIGHT) {
                ...
            }
    }

Overview and Instructions

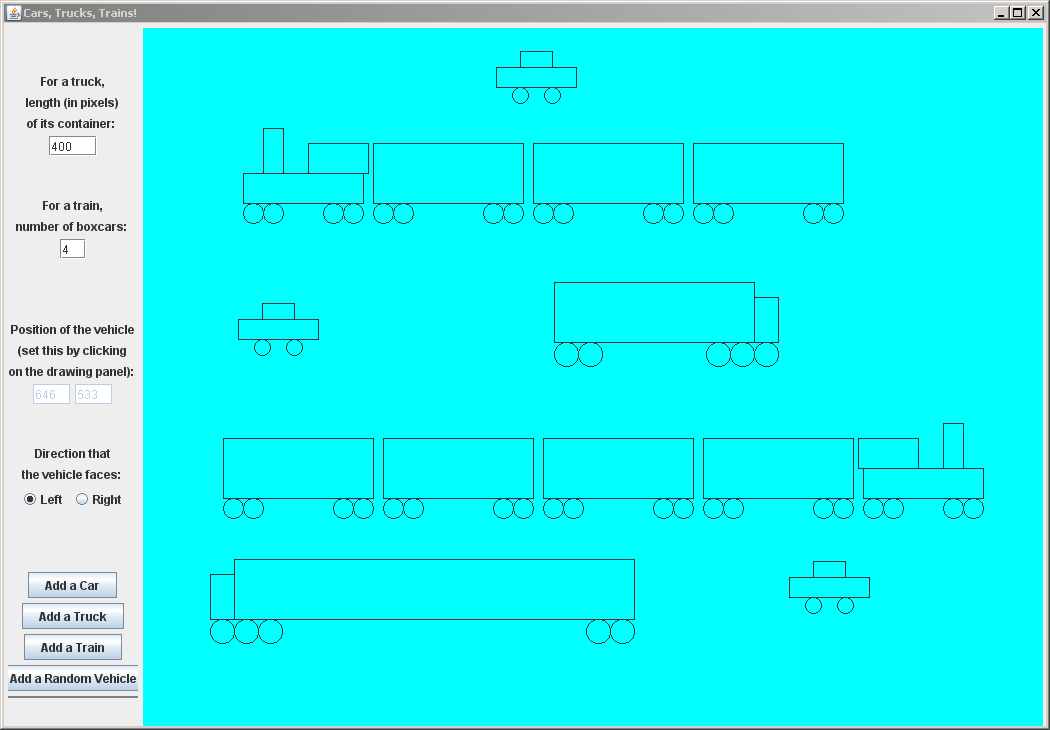

You will design and implement an application that has all the functionality suggested by the picture to the right and described in the Specification below. You will implement by using: (Optionally) pair programming documented stubs an iterative enhancement plan You must obey the UML class diagram that we developed as a class. But see the important Note on that UML class diagram (in yellow), that indicates what it means to “obey the diagram”.

1. Checkout the CarsTrucksTrains project that we put in your individual repository.

   • Or from your shared repository if you are using pair programming.

2. Your instructor will have demonstrated a completed CarsTrucksTrains project. Read the Specification below. Ask questions as needed.

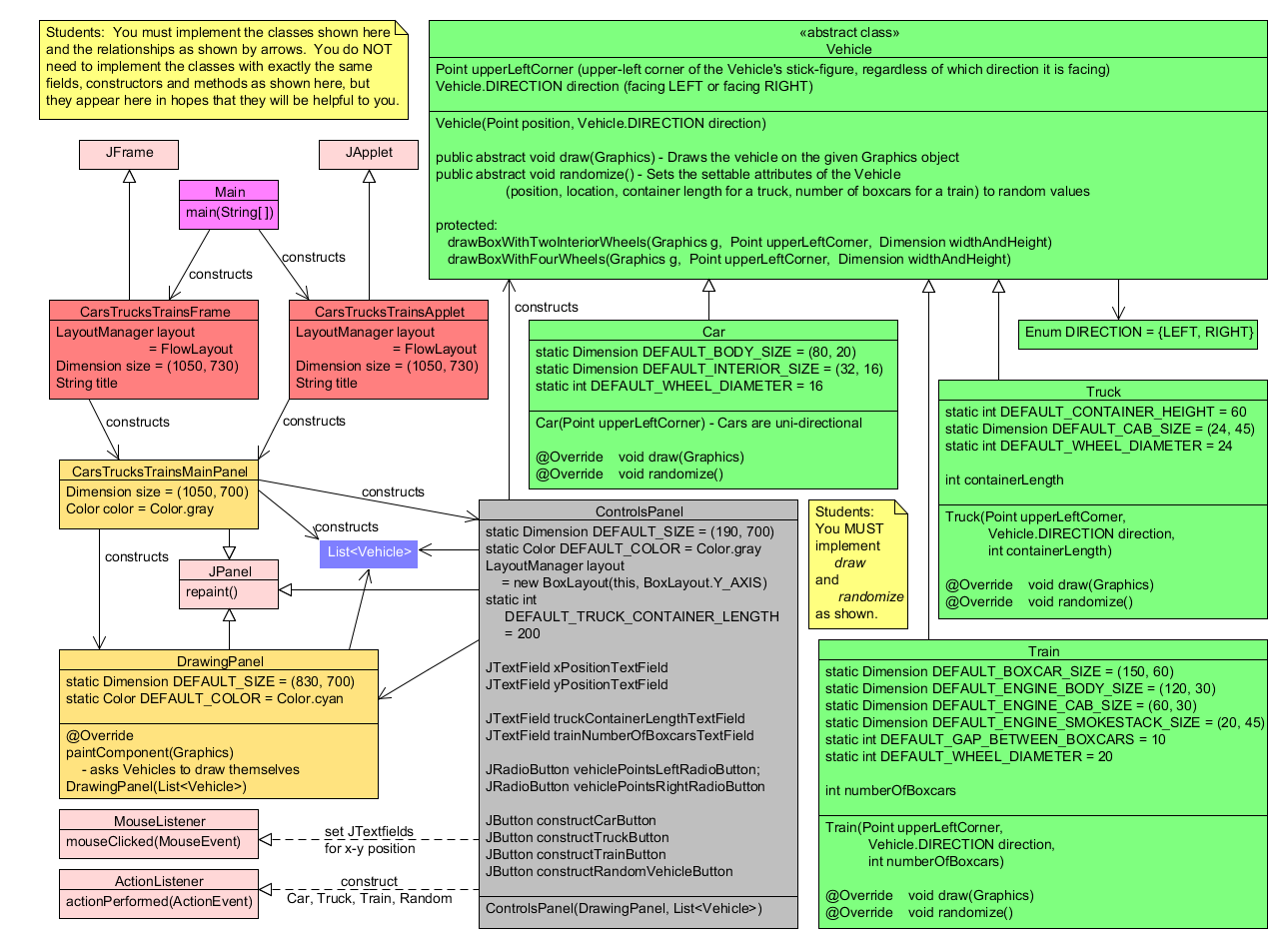

3. With your instructor, review the UML class diagram that you developed in whole-class discussion.

4. Write an iterative enhancement plan in the IterativeEnhancementPlan.txt file in your checked-out CarsTrucksTrains project.
   • You should have about 8 stages of approximately equal size.
   • For each stage, indicate what your project will be able to do as a result of that stage.
     • Each stage must be testable by RUNNING the program.
     • AVOID descriptions like “Implements Car class”.
   • For each stage, indicate how long (to the nearest half-hour) you think that it will take you to implement that stage.
   • As you implement, you will measure how long it ACTUALLY took to do each stage (to the nearest half-hour).
   • By comparing your estimates to your actual times, you will (eventually) become better at the (admittedly difficult) skill of estimating implemenation times.

5. Implement your project per your Iterative Enhancement Plan and using documented stubs.

   • As you complete each stage, record in your IterativeEnhancementPlan.txt file the time that you spent implementing that stage (to the nearest half-hour).

Specification

1. Basic functionality: Your program must be able to display cars, trucks and trains, as follows:

   1. Vehicles are drawn as stick-figures (no images).
   2. The user can add cars, trucks and trains to the display, by using the user interface demonstrated to you and pictured above.
      • Once added, a vehicle must remain displayed (even if the application is minimized and then maximized, for example).
      • The user interface also allows the user to place a random vehicle with whatever (reasonable, random) parameters are needed for the location, direction, container length (for trucks) and number of boxcars (for trains) for that vehicle.

   3. All cars have the same size, as follows:
      • Body (bottom rectangular box) is 80 by 20.
      • Interior (top rectangular box) is 32 by 16.
      • Car wheels have diameter 16.
      • Choose any reasonable placement of interior on top of body and 2 wheels below body -- exact placement is not important.
   4. For trucks:
      • The cab (front part of the truck) is 24 by 45.
      • The length of the container (rectangle behind the cab) is specified by the user.
      • The height of the container is 60 (no matter how long the container is).
      • Truck wheels have diameter 24.
      • Choose any reasonable placement of 4 wheels below the container and 1 wheel below the cab -- exact placement is not important.
   5. For trains:
      • The engine body is 120 by 30.
      • The engine smokestack (tall rectangle on top of engine body) is 20 by 45.
      • The engine cab (long rectangle on top of engine body) is 60 by 30.
      • Each boxcar is 150 by 60.
      • The gap between boxcars is 10.
      • The number of boxcars is specified by the user.
      • Train wheels have diameter 20.
      • Choose any reasonable placement of smokestack and cab on top of the engine body, and any reasonable placement of 4 wheels below the engine and 4 wheels below each boxcar -- exact placement is not important.

   6. Per the user interface described below, the user specifies:
      • the direction (facing left or right)
      • position (x,y)
      • length of container (for trucks)
      • number of boxcars (for trains)

2. Additional functionality. You may implement additional features if you wish, but you receive full credit simply for the above; extra functionality will NOT earn any extra points.
   • Instead of extra functionality in this project, consider saving your energy for the upcoming VectorGraphics project.
3. User interface: The user interface must be as demonstrated and pictured above. Ask your instructor if you have questions about the user interface.
4. Platform. Your program must be able to run as either a Java Application or a Java Applet.
5. Implementation requirements. Your program must:

   1. Make good use of inheritance and polymorphism. In particular:
      • You must have a Vehicle class with subclasses Car, Truck and Train.
      • Your vehicles should be stored in a single list of Vehicle objects (instead of having separate lists for Cars, Trucks and Trains).
      • Each Vehicle subtype should have a draw(Graphics) method that draws that type of Vehicle.
      • Each Vehicle subtype should have a randomize() method that randomizes the following attributes of that type of Vehicle:
        • location
        • direction
        • for trucks, length of its container
        • for trains, number of its boxcars
      • Data and functionality common to the Vehicles should be placed in the Vehicle class.
   2. Obey the UML class diagram that we developed as a class.
   • But see the important Note on that UML class diagram (in yellow), that indicates what it means to “obey the diagram”.
   3. Use Swing components.
   4. Have a clearly documented, object-oriented design that could be easily extended to incorporate additional features.
   5. Have code that is clear, is easily extended, and obeys Sun's code conventions.
      • In Eclipse, Source ~ Format (Control-Shift F) enforces these code conventions.
      • Also choose appropriate names for variables, methods and classes.
   6. Be reasonable in its use of space and time
   7. Be implemented by using documented stubs, an iterative enhancement plan and (optionally) pair programming.
