CSSE 230
Data Structures and Algorithm Analysis
Homework 1 - 50 points
To Be Turned In (at the end of this document are some
problems to consider but not are not for submitting)
These are to submitted to the Homework 1 Moodle assignment
as a single file in MSWord format or pdf format. You can write your solutions out by hand and scan
them (there is a networked scanner in F-217, and several scanners in
the library's Digital Resource Center), or create a file on your
computer directly. Some apps also allow you to take a photo with your
phone or tablet and save it as a pdf. After you have submitted to the Moodle assignment, click
on the submission to verify that it was uploaded successful. Warning: unreadable hand written submissions earn zero credit.
Some homeworks will contain problems that are very
challenging. You should read them as soon as they are
assigned in case you need a couple of days to ponder one of them.
The numbers in [square brackets] are problem numbers from the
third edition of Weiss, for those who have that version.
Late days may be used or earned for homeworks.
In problems #2,3, and 4, if you don't know
what Big-Theta running time is, you will be safe giving
Big-Oh.
- (4 points) Weiss exercise 2.13 [2.11]. Hint: If one calls
resize(ar) from main(), ar is unchanged. Why? Drawing a box-and-pointer
diagram may help you.
- (6 points)
Choose one of the following answers for each part: Θ(log (N)), Θ(N),
Θ(N log (N)), Θ(N2), or Θ(N3). What is the Big-Theta running time of ...
- ...an unsuccessful sequential
search of an unordered array that contains N elements?
- ...an unsuccessful binary
search of an ordered array that contains N elements?
- ...a merge sort of an array that contains N elements?
- (10
points) For each of the following four code fragments, similar to Weiss
problem 5.20, first write the exact
number of times the "sum++"
statement executes in terms of n, using the ceiling or floor if needed.
(Hint: two of them do.) Then use that to also write the Big-Theta
running time.
-
for (int i = 0; i < n; i++) {
sum++;
}
-
for (int i = 0; i < n; i += 2) {
sum++;
}
-
for (int i = 0; i < n; i++) {
for (int j = 0; j < n; j++) {
sum++;
}
}
-
for (int i = 0; i < n; i++) {
sum++;
}
for (int j = 0; j < n; j++) {
sum++;
}
-
for (int i = 1; i < n; i *= 2) {
sum++;
}
- (4 points) Weiss exercise 5.11 [5.8]. Give the exact
running time in terms of N, the big-Theta
running time, and a brief explanation of the exact running time.
- (6 points) When the input size is N,
algorithm A uses 5 N log N
operations, while algorithm B uses N2
operations. For small values of N,
algorithm B is faster; for large values of N,
algorithm A is faster. Determine the smallest possible integer
N0 such that for all N
> N0 algorithm A
is faster than algorithm B. Explain how you know that this is the
correct integer. (Hint: if solving for N isn't working for you,
graphing this in Maple and submitting your graph sounds like a great
idea!)

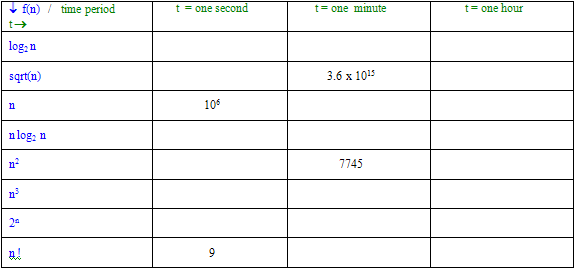

- (20 points) For each function in the following table,
determine the largest size n of a problem that
can be solved in time t, assuming that the problem takes f(n)
microseconds, where f(n) is
the function in the left column. Throughout this course,
unless I specify otherwise, log n means the
logarithm in base 2 of n.
If the answer is small, give the
exact answer. (Note if you would get a non-integer result, your answer
must be the floor of it - make sure you understand
why.) If
it is a million or larger, you can use
scientific notation, with a couple of decimal places of
precision. Hint: Maple is your friend! If
it overflows Maple (like line 1 might), you may give an
expression instead.
For Your Consideration
These problems are for you to think about and convince
yourself that
you could do them. It would be good practice to actually do them in the
next couple of weeks, but you are not required to turn them in.
- The code in Weiss 2.13 above did not work as
expected. Rewrite the code to allow the resize method to work. Hint:
place the array to resize inside another object.
