- (2 points) We will write the function rectangleOfStars together in class. Make sure you understand how it works. Ask for help if you’re confused.
- (5 points) Based on rectangleOfStars, fill in doc-comments and code for the function triangleOfStars. This prints out a triangle-shaped grid of stars. For example, the code:
triangleOfStars(6)
should produce the output:* ** *** **** ***** ******
After testing and debugging this function, commit your work to your Subversion repository. Be sure to enter in a sensible log message as the course staff will review the messages.
- (5 points) Now make a function called triangleSameNumEachRow. This function will be like triangleOfStars, except each row shows its number, rather than asterisks. For example, the code:
triangleSameNumEachRow(7)
should produce the output:1 22 333 4444 55555 666666 7777777
After testing and debugging this function, commit your work to your Subversion repository. Be sure to enter in a sensible log message as the course staff will review the messages.
- (5 points) The next function, triangleAllNumsEachRow, is like triangleSameNumEachRow, except that each character is its position from the left, instead of from the top. For example:
triangleAllNumsEachRow(6)
should produce the output:1 12 123 1234 12345 123456
After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (7 points) The next function, triangleNumsRightJustified, is like triangleSameNumEachRow (from problem 6, not the previous problem), except that the triangle is right-justified. For example:
triangleNumsRightJustified(8)
should produce the output:1 22 333 4444 55555 666666 7777777 88888888After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (10 points) The next function, triangleNumsCentered, is like triangleNumsRightJustified, except that the triangle is centered and includes spaces. For example:
triangleNumsCentered(9)
should produce the output:1 2 2 3 3 3 4 4 4 4 5 5 5 5 5 6 6 6 6 6 6 7 7 7 7 7 7 7 8 8 8 8 8 8 8 8 9 9 9 9 9 9 9 9 9After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (5 points) The next function, numbersConstantForward, takes three arguments: the number of rows, a maximum number to display, and a number of occurrences. The function displays a block of numbers. Each row should be identical and consist of the given number of occurrences of each number from 1 to the maximum number. For example:
numbersConstantForward(4, 7, 3)
should produce the output:111222333444555666777 111222333444555666777 111222333444555666777 111222333444555666777
After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (6 points) The next function, numbersConstantBackward, is just like numbersConstantForward, except the numbers go from the maximum number down to one. For example:
numbersConstantBackward(4, 7, 3)
should produce the output:777666555444333222111 777666555444333222111 777666555444333222111 777666555444333222111
After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (5 points) The next function, numbersIncreasingForward, also produces a block of numbers. But it takes just two arguments: the number of rows to print and the maximum number, n, to reach. Each row should be identical and consist of a single 1, a pair of 2s, and so on, up to n occurrences of the number n. For example:
numbersIncreasingForward(5, 6)
should produce the output:122333444455555666666 122333444455555666666 122333444455555666666 122333444455555666666 122333444455555666666
After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.
- (5 points) The next function, cartesianProduct, takes just two arguments s1 and s2: each of them is a list. It creates and returns a list of all of the ordered pairs whose first element is from s1 and whose second element is from s2. For example:
cartesianProduct([1, 3, 5], [8, 9])
should produce the output:[[1, 8], [1, 9], [3, 8], [3, 9], [5, 8], [5, 9]]
After testing and debugging this function, commit your work to your Subversion repository using a sensible log message.

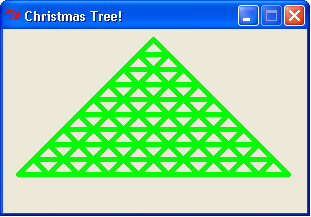

- (10 points) The final function, triangularPyramid, uses nested loops with graphics, rather than printing text. The function takes a single argument, n, giving the height of a pyramid made of triangles. It should create an appropriately sized graphics window and draw a pyramid of triangles in the window. Each triangle should be the same size, with a single upright triangle in the top row, two in the second, and so on down to n upright triangles in the bottom row. (Hint: you don’t need to draw the upside-down triangles explicitly.) You can choose how narrow you want your triangles to be; we chose the height to be half the width of the triangle. For example:
triangularPyramid(9)
could produce the output (color and thick lines optional):
Include a getMouse() call at the end of your function so the graphics window is displayed long enough to be seen.
- BONUS: (5 points) Decorate your pyramid with flags or poles. Hang them using loop patterns, of course. You could even hang photos (zellegraphics accepts GIF format only) on the poles.
- Submit your code by committing the final version to your Subversion repository.
