J. A. Panitz
The University of New Mexico Department of Physics and Astronomy
800 Yale Blvd. NE Albuquerque, NM 87131 Phone (505) 277-8488 Fax (505) 277-1520 E-mail panitz@unm.edu

Advanced Laboratory and/or Lecture Demonstration Apparatus and also Low Cost

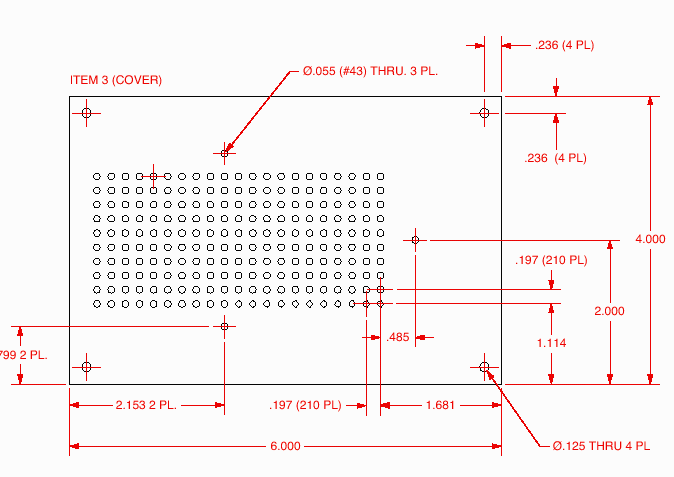

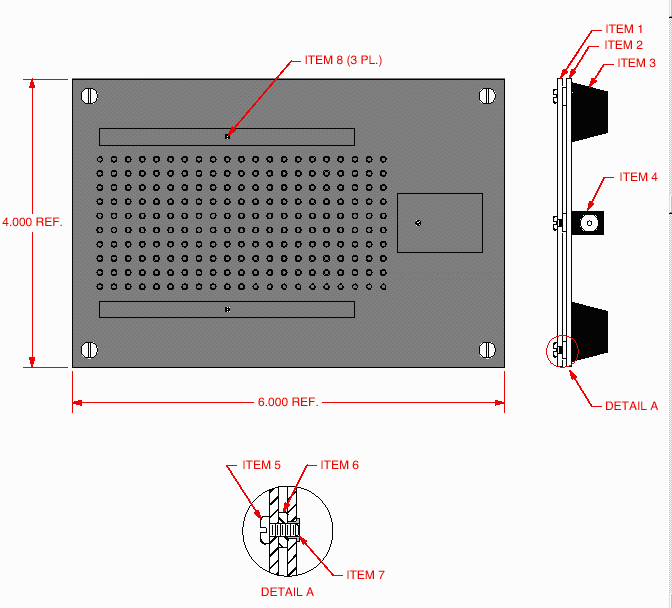

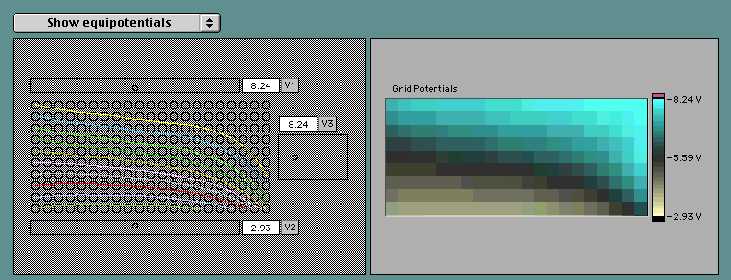

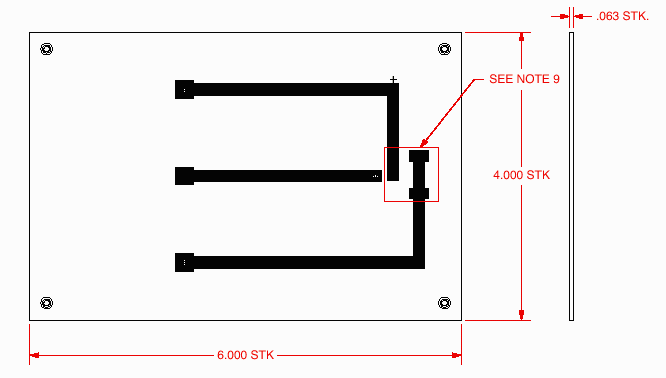

Apparatus Title: An Equipotential PCB

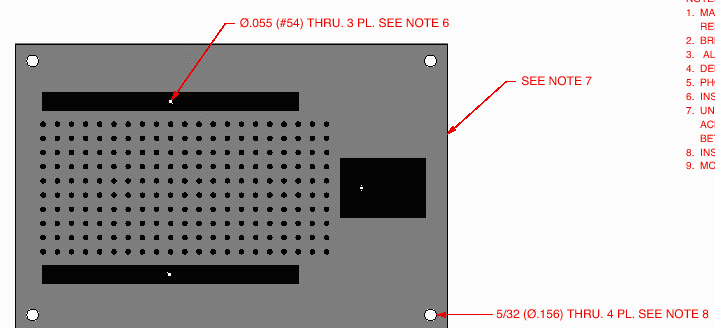

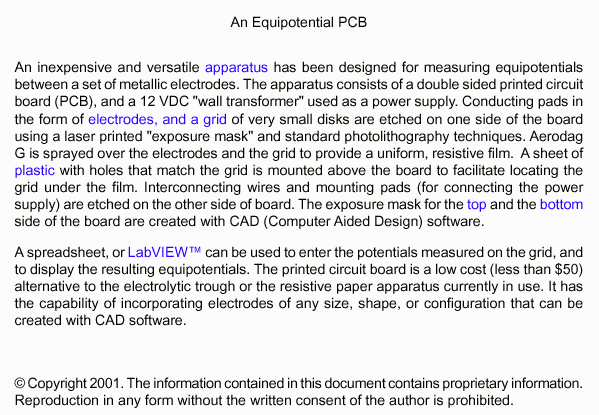

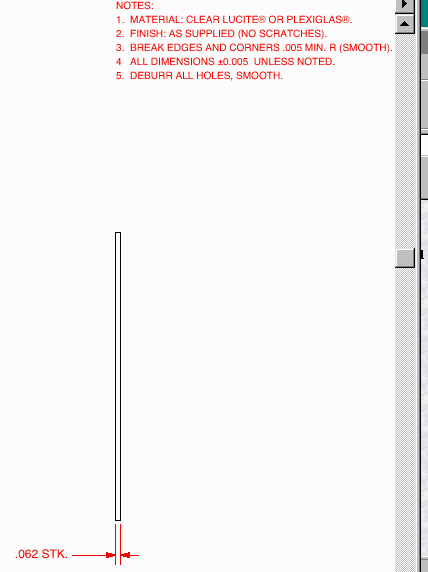

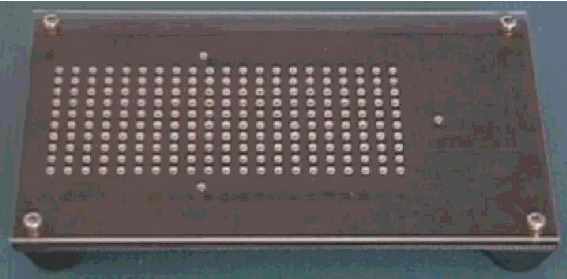

Abstract An inexpensive and versatile apparatus has been designed for measuring the equipotentials between a set of metallic electrodes. The apparatus is a low cost (less than $50) alternative to the electrolytic trough or the resistive paper apparatus currently in use. It can incorporate electrodes of any size, shape, or configuration.

Description of Apparatus

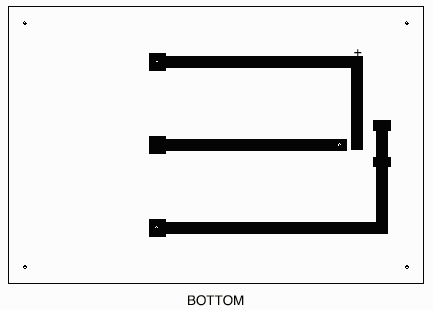

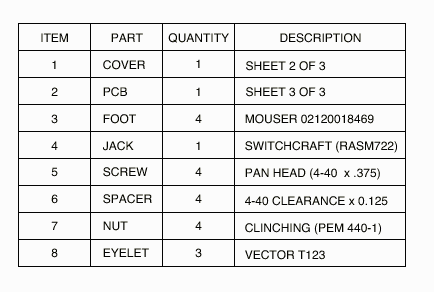

Equipment required to construct apparatus:

Item Source/Store Part Number Cost (See the table on page 3 of the file called "Entry.pdf") $30

Miscellaneous AC Adapter (6 VDC @ 1.2 A). MagneTek WDU6-1200. $12

Total cost.......................................................................$ 42
