Mesh Analysis

Current Source in Two Meshes (Supermeshes)

Problem #2

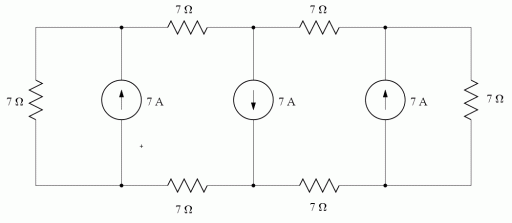

Determine each mesh current in this circuit.

diagram
