Frequency Response

Third-Order Lowpass Filter

Problem #1

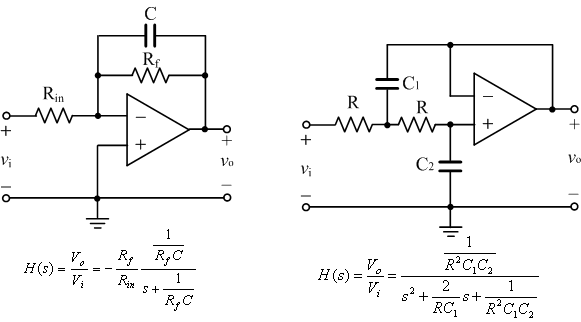

Use the prototype circuits shown below to design a third-order lowpass Butterworth filter that will have a passband gain of 10 dB and a cutoff frequency of 4 kHz.

diagram
Need a hint?

solution

Check your result
