Keywords:
Frequency Response
Bode Plots
Problem #8
Need a hint?

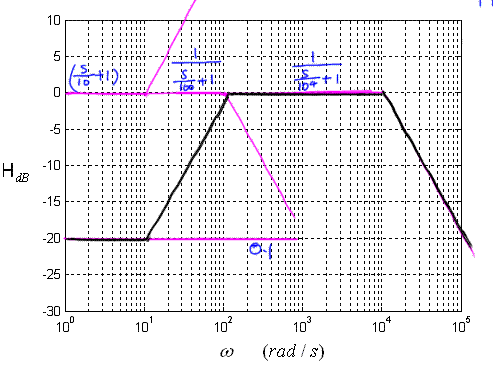

Convert the transfer function into the multiplication of gain, simple zeros and simple poles. Plot each of the factors separately and then add up graphically.
