Keywords:
Balanced Three-Phase
Introductory Concepts
Problem #1

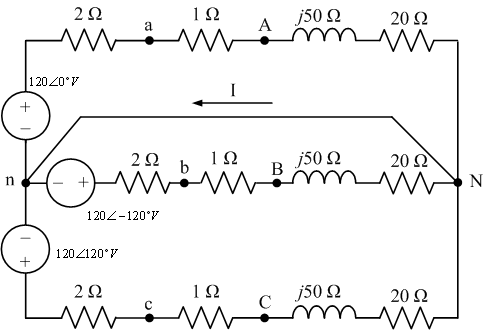

Is the circuit a balanced three-phase system? Find I.
Need a hint?
To determine if a circuit is a balanced three-phase system, we need to check if the following conditions are satisfied:
1. The voltage sources are a set of balanced 3-phase voltages.
2. The source impedance of each phase is the same.
3. The impedance of each phase of the line is the same.
4. The load impedance is the same for each phase.
