Keywords:
Frequency Response
Bode Plots
Problem #5

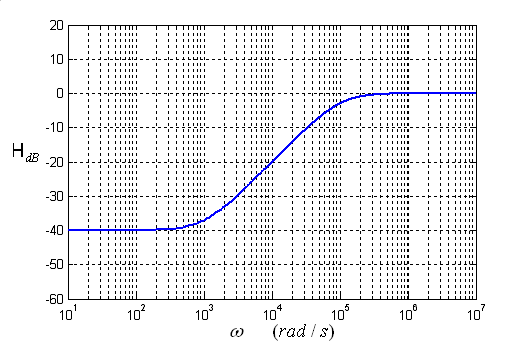

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagram shown in the figure below.
Need a hint?
The transfer function consists of a constant gain, a simple zero and a simple pole.
