CSSE 220 – Object-Oriented Software Development

Homework 7

Objectives

Practice with iteration in Java. More practice implementing graphics classes based on a given specification.

Tasks

1. Complete the assigned reading for the next session: Chapter 8.  As you read, see if you can answer the self-check questions. If there is something you do not understand, make note of it so you can ask about it in class.
2. Edit the Big Java Review Wiki on ANGEL. This chapter has a lot or review questions, so you are to do seven stars worth of questions.
3. Programming: Pascal's Christmas Tree:

   This program is for HW 7 and for part of HW 8.  Te official due time for this problem (and for another small problem that will be assigned as part of HW 8) is Session 9 day at 8:05 AM.  Ideally you should do it by then and do HW 9 (which will be shorter) sometime Thursday afternoon/evening or Friday.

   But I recognize that there are two issues some of you might be facing:

   • Several of your professors may be giving exams before the break, or substantial assignments (like this one).
   • I mentioned on the first day of class that the first exam in this class is after the break. The reason is that during the first three weeks some of you may discover that your background is not as strong as it should be for this course, or that you are not progressing in Java programming as fast as you need to. If you are in that position, the break can be a "catch-up" time for reading, understanding, and programming. You may find this assignment overwhelming; after you catch up, you should be able to do this one.

   Thus I will allow you a "grace period" until Friday at noon.  That means that you can turn it in until that time with no late day cost. And the late "day" for this assignment will extend until the end of the break, 8:05 AM on Monday, January 5.
   Warnings: Someone may read the above statement and think, "Wow! I can blow off this assignment entirely until next week or the week after." I think that will be a big mistake. You should at least do enough before Thursday to "get into it" and find out if there are things you need to ask about this week while I and the lab assistants are around.

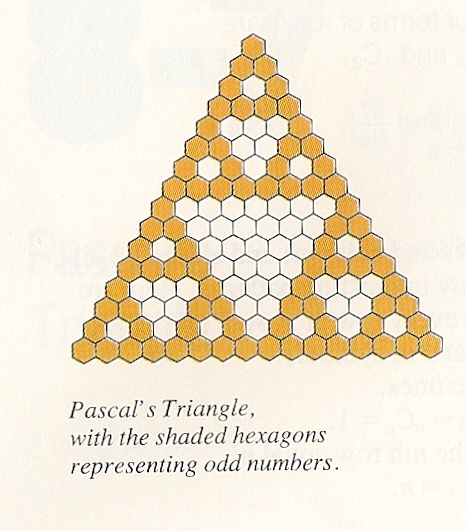

   (30 points) The following picture appears in the University of Chicago School Math Project's high-school book Functions, Statistics, and Trigonometry:

   You will write a program that draws pictures like this. If you use green for odd numbers and red for even, you will understand the title of the assignmsent.  For an introduction to Pascal's Triangle, see http://en.wikipedia.org/wiki/Pascal_triangle .

   Consider which rows contain only odd numbers They are rows 0, 1, 3, 7, 15, ...  Then consider this table that maps n to the corresponding "all odd" row:


   n	r(n) = corresponding row with all odd numbers
   0	0
   1	1
   2	3
   3	7
   4	15


   Your program should prompt the user for a number, n, and then pop up a window on which it draws the shaded triangle of regular hexagons whose last row is r(n).  The window should always be the same size (750 x 750 worked well for me, your PascalComponent code must be written so that it still works if we change the window dimensions); the hexagons should get smaller as n gets bigger, so that the triangle mostly fills the window.

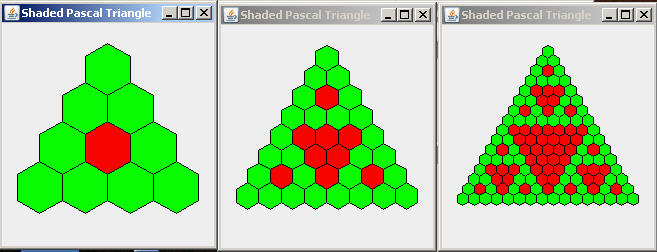

   That's all! But it's easier said than done.  The following examples show the results for n=2, 3, and 4.  To produce these examples, I used a smaller window size, so the pictures would fit here easily.  Notice that the triangle is the same size for each n; the hexagon size is smaller for larger n.


   You can find the starting code in the DecisionsAndIteration project in your SVN repository.  The following incremental steps may help you to get there.  You are not required to take this path; the only deliverable is a well-written, well-documented program that produces the correct pictures.  If you follow this path, my best guess is that step (g) is the halfway point in the time required to do this assignment.
   1. Write a static method combinations()that computes the k^th entry for row n, which is  _nC_k, the number of different combinations of n distinct items, taken k at a time. one well-known formula for this is n(n-1)...(n-k+1) / k!.  The following example shows a computation order that may be preferable:
      ₁₂C₄ = 12 / 1 * 11 / 2 * 10 / 3 * 9 / 4.  Note that for all nonnegative integers n ≤ k,  when evaluated left-to-right (as Java does), each intermediate value in the above computation is an integer.  Of course you will need a loop to do this computation.  [Advanced:  You can speed up the computation considerably by storing previously-computed value(s) and using them to compute the next value, but that is not required for this assignment].
      Test your method.
   2. Write nested loops to print Pascal's triangle to the console.  Don't worry about formatting, except that you should get the correct numbers in the correct order on each row.
   3. Create a graphics program that repeatedly draws some shape (doesn't matter what shape) in a centered triangular pattern.  This is a "for practice only" program.
   4. Write a static method  that produces and returns a regular hexagon Shape that can by drawn or filled by a Graphics2D object.  My suggestion is that you produce a Path2D.Double object instead of a Polygon object, because the latter can have coordinates that are not integers.  The moveTo() and lineTo() methods of the Path2D.Double class may be particularly useful.  At what angle from the x-axis should the first vertex be in order to draw hexagons that are oriented like the ones in the pictures?  I found that the following signature made the method easy to implement:
         public Path2D.Double hexagon(double centerX, double centerY, double radius)
      Test your method by drawing some hexagons.
   5. Draw a row of contiguous regular hexagons across the screen.  What is the relationship between the width of a hexagon and its radius?
   6. Draw a second row of hexagons below the first, positioning them so that they form the honeycomb pattern as in the pictures. As a function of the hexagon radius, what is the vertical distance between the top of one row and the top of the row below it?
   7. Determine the rectangular area in which the triangle is to be drawn, based on the window width and height and the minimum inset you want to have around the triangle. Then, based on n, determine the radius of the largest hexagons that you can use to draw the triangle inside this rectangle.
   8. Draw the triangle of hexagons, containing the correct number of rows, based on n.  Test it for n=2, 3, 4, 1, and 0.
   9. Before you draw each hexagon, fill it with the correct color, based on parity of the numbers in Pascal's triangle.
   10. Try slightly larger values of n.  Does your code still work?  If not, fix it.  For a 750 x 750 window, my pictures look good and draw instantly up through n=7.  For n=8, it takes about 3 seconds to draw, and the hexagons are so small that the black lines of their borders begin to obscure the red and green.  n=9 takes a while longer and does not look good at all.  For n=10 (1024 rows of the triangle), the hexagons are so small that the black borders fill the entire triangle; it takes more than a minute to draw it unless I use a very efficient algorithm.
   11. Commit the project to your repository.

Turn-in Instructions

We will grade your Wiki contributions using ANGEL. Turn-in your programming work by committing it to your SVN repository.
